20 Single factor experiments
Experiments in which only a single factor varies while all others are kept constant are called single-factor experiments. In such experiments, the treatments consist solely of the different levels of the single variable factor. All other factors are maintained uniformly across all experimental units.
Examples:
An experiment to find the best nitrogen level for getting a high yield, where 5 different nitrogen levels are tested. Here, the nitrogen levels are the treatments, and all other factors like irrigation, light, and fertility gradient are assumed to be homogeneous in all experimental units (here the plots are the experimental units).
An experiment to find the best feed formulation for milk yield in cows from 4 feed formulas. Here, the feed formula is the only factor that varies, with 4 levels. All other factors like breed of cow, age, and so on are kept constant.
20.1 Completely Randomized Design (CRD)
Completely Randomized Design is the basic single factor design. In this design the treatments are assigned completely at random so that each experimental unit has the same chance of receiving any one treatment. CRD is only appropriate for experiments with homogeneous experimental units, such as laboratory and green house experiments, where environmental effects are relatively easy to control. For field experiments, where there is generally large variation among experimental plots, CRD is rarely used.
CRD provides a layout for conducting experiments, when experimental units are homogeneous. Only two basic principles of design, randomization Section 16.7.1 and replication Section 16.7.2 are followed in CRD. Local control Section 16.7.3 is not required as all the experimental units are homogeneous. Treatments can have unequal replications in CRD.
20.1.1 Randomization procedure
Consider an experiment involving four treatments A, B, C, D in CRD. Each treatment is replicated 5 times. Randomization procedure is as explained below.
Determine the total number of experimental units (\(n\)) as the product of the number of treatments (\(v\)) and the number of replications (\(r\)); that is, \(n = r\ \times v\). For our example, \(n = 5 \times 4 = 20\)
Assign a unit number to each experimental units in any convenient manner; for example, consecutively from 1 to n. For our example, the unit numbers 1, 2,... , 20 are assigned to the 20 experimental units as shown in Figure Figure 20.1
Assign the treatments to the experimental plots by using any randomization schemes. Here we explain a simple randomization scheme in section Section 20.1.1.1.
Randomization by drawing lots
Prepare \(n\) identical pieces of paper and divide them into \(v\) groups, each group with \(r\) pieces of paper. Label each piece of paper of the same group with the same letter (or number) corresponding to a treatment. Uniformly fold each of the \(n\) labeled pieces of paper, mix them thoroughly, and place them in a container. For our example, there should be 20 pieces of paper, five each with treatments A, B, C, and D appearing on them.
Draw one piece of paper at a time, without replacement and with constant shaking of the container after each draw to mix its content. For our example, the label and the corresponding sequence in which each piece of paper is drawn. The sequence number can be considered as the experimental unit number to which the treatment is to be assigned.
| Treatment Label | D | B | A | B | C | A | D | A | A | B |
| Sequence | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Treatment Label | C | D | C | D | B | B | A | C | D | C |
| Sequence | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
20.1.2 Layout of CRD
After allotting the treatment according to the randomization procedure explained in section Section 20.1.1. The final layout will look like in the figure Figure 20.2.
20.1.3 Statistical model for CRD
Consider a CRD with v treatments with r replications. Statistical model for CRD is same as that of one-way ANOVA (Section 18.6.1.1).
\[Y_{\text{ij}} = \mu + \tau_{i} + e_{\text{ij}}\]
Where i = 1,2, …, v and j =1,2, …, ri. \(Y_{\text{ij}}\) is the observed value of \(i^{\text{th}}\) treatment from \(j^{\text{th}}\) replication, \(\tau_{i}\) is the effect of \(i^{\text{th}}\) treatment. \(\mu\) is the general effect which is common for all treatments. \(e_{\text{ij}}\) is the error effects.\(e_{ij}\) \(\sim iid\ N(0,\sigma^{2})\)
20.1.4 Analysis of CRD
Analysis of CRD is same as that explained in section Section 18.6.1.5 of one-way ANOVA.
Note
Unequal replication (i.e. each treatment can have a different number of replications) is possible in CRD. So while calculating the treatment sum of squares, each treatment total is squared and divided by its corresponding replication, and then the sum is taken. If the replication is the same for all treatments, the treatment sum of squares is obtained by taking the sum of the squares of the treatment totals and dividing by the common replication number.
| Source | D.F. | S.S | M.S.S | F |
|---|---|---|---|---|
| Treatments | \(v-1\) | \(\text{SST} = \sum_{i=1}^{v}\dfrac{T_i^2}{r_i} - \text{C.F.}\) | \(\text{MST}=\dfrac{\text{SST}}{v-1}\) | \(F = \dfrac{\text{MST}}{\text{MSE}}\) |
| Error | \(n-v\) | \(\text{Total SS} - \text{SST}\) | \(\text{MSE}=\dfrac{\text{SSE}}{v(r-1)}\) | |
| Total | \(n-1\) | \(\sum_{i=1}^{v}\sum_{j=1}^{r} y_{ij}^2 - \text{C.F.}\) |
Post hoc test (LSD)
If the null hypothesis is rejected in ANOVA; we proceed to post-hoc test explained in section Section 19.2. Fisher’s Least significant difference (LSD) test explained in section Section 19.2 is the commonly employed test in agricultural experiments.
Arrange the treatment means in descending order. Critical difference (CD) is calculated for each treatment pair \(T_{i},\ T_{j}\) using the following formula.
\[C.D. = t_{\left( \frac{\alpha}{2},\ error\ df \right)}\sqrt{\text{MSE}\left( \frac{1}{r_{i}} + \frac{1}{r_{j}} \right)}\]
(for CRD with unequal replication)
\[C.D. = t_{\left( \frac{\alpha}{2},\ error\ df \right)}\sqrt{\frac{2\,MSE}{r}}\]
(for CRD with equal replication)
Here \(t_{\left( \frac{\alpha}{2},\ \ \ error\ df \right)}\) denotes the critical value of Student’s t for a two tailed test at α level of significance and error degrees of freedom. \(r_{i}\) and \(r_{j}\) are replications of \(T_{i},\ T_{j}\) respectively. If the difference of any two treatment means is greater than the critical difference, they are significantly different. If the difference of any two treatment means is less than \(\text{C.D}\). they are said to be on par. (i.e., there is no any statistically significant difference). Those treatments which are at par is given same symbols or letters, such that treatment means without any common letters or symbols are significantly different at corresponding level of significance (\(\alpha\)).
20.1.5 Replications in CRD
An experimenter is free to choose any number of replications in the experiment. The precision in estimating experimental error variance increases as the number of replications increases. But the design should be such that the number of replications should be optimum, since increasing the replications will increase the experiment cost. So, there is a rule of thumb that says, error degrees of freedom should be at least 12 to keep type II error in check. One can easily find the number of replications required in a design by using the equation for error degrees of freedom of that design.
It is assumed that edf \(\geq 12\). For CRD it is given by
\[n - v = rv - v = v\left( r - 1 \right) \geq 12 \tag{20.1}\]
where \(v\) is the number of treatments, \(r\) is the replication and \(n\) is the total number of experimental units, \(n = vr\).
Example 20.1 You have 5 treatments; you are planning to conduct the experiment in CRD. Find the minimum number of replications required.
Solution
from Equation 20.1, since v = 5, edf \(= 5\left( r - 1 \right) \geq 12\)
\(r \geq 3.4\), since \(r\) cannot be a fraction, \(r =\) 4
The minimum number of replications required is 4.
Why is the minimum error degrees of freedom for a design taken as 12?
The error degrees of freedom play an important role in determining the critical value of F. As the error degrees of freedom (the denominator degrees of freedom) decrease, the critical value of F increases, making it more difficult to reject the null hypothesis. Consequently, the risk of a Type II error (β) increases, as a true treatment difference may go undetected unless the observed treatment effect is sufficiently large. As the denominator degrees of freedom increase, the critical value of F decreases and becomes relatively stable beyond about 10–12 degrees of freedom. Therefore, 12 error degrees of freedom is commonly taken as a practical minimum when determining the number of replications, providing a reasonable balance between statistical precision and experimental resources.
Example 20.2 In order to find the yielding abilities of five varieties of sesame an experiment was conducted in the green house using a CRD with four pots per variety. The results are given in the following table below.
|
Variety
|
|||||
|---|---|---|---|---|---|
| Replication | V1 | V2 | V3 | V4 | V5 |
| 1 | 25.00 | 25.0 | 24.00 | 20 | 14.00 |
| 2 | 21.00 | 28.0 | 24.00 | 17 | 15.00 |
| 3 | 21.00 | 24.0 | 16.00 | 16 | 13.00 |
| 4 | 18.00 | 25.0 | 21.00 | 19 | 11.00 |
| Total | 85.00 | 102.0 | 85.00 | 72 | 53.00 |
| Mean | 21.25 | 25.5 | 21.25 | 18 | 13.25 |
Solution
Correction Factor:
\(= \frac{G^{2}}{n} = \frac{\left( 397 \right)^{2}}{20}\)=7880.45
Total Sum of squares:
\(= \left( 25^{2} + 21^{2} + .... + 11^{2} \right) - CF\)
\(= 8307 - CF = 426.55\)
Treatment Sum of Squares:
\(\frac{1}{4}(85^{2} + 102^{2} + ... + 53^{2}) - CF\) \(= 8211.75 - CF = 331.30\)
Error Sum of Square: \(426.55 - 331.30 = 95.25\)
| Sources | DF | SS | MSS | F (Calculated) | F (Tabulated) |
|---|---|---|---|---|---|
| Varieties | 4 | 331.30 | 82.825 | 13.043** | F(4,15) = 3.06 (5% level) |
| Error | 15 | 95.25 | 6.35 | ||
| Total | 19 | 426.55 |
Since the F value calculated is greater than table value of F, we can reject the null hypothesis and conclude that there is a significant difference between at least a pair of treatments. So in order to find which treatments are significantly different, we perform Fisher’s LSD test.
\[\text{CD} = t_{\frac{\alpha}{2}}\sqrt{\frac{2 \times \text{MSE}}{r}} = 2.131\sqrt{\frac{2(6.350)}{4}} = 2.131 \times 1.7819 = 3.7972\]
\(t_{0.025\text{ at }15 \text{ edf}} = 2.131\) (Just look for the critical value of t for a two tailed test at α = 0.05 in the statistical table, see Table 28.1 in Appendix 4.
It is shown as \(t_{\frac{\alpha}{2}}\), since it is a two tailed test in the one side of the t-distribution curve the probability will be \(\frac{\alpha}{2}\), so that combined probability is α.)
Treatment means arranged in descending order. Those treatment pairs whose difference in means is greater than C.D. is labelled with a different letters.
| Treatments | means | Grouping using alphabets |
|---|---|---|
| \(V_{2}\) | 25.5 | a |
| \(V_{1}\) | 21.25 | b |
| \(V_{3}\) | 21.25 | b |
| \(V_{4}\) | 18 | b |
| \(V_{5}\) | 13.25 | c |
In the above table we can see that the difference between the means of \(V_{2}\) and \(V_{1}\) is 4.25, which is greater than the C.D. value. So \(V_{2}\) and \(V_{1}\) are significantly different, and different letters are assigned to each of them. Instead of letters one can also use symbols as shown below. Those treatments with the same letters/symbols are not significantly different.
| Treatments | means | Grouping using symbols |
|---|---|---|
| \(V_{2}\) | 25.5 | @ |
| \(V_{1}\) | 21.25 | * |
| \(V_{3}\) | 21.25 | * |
| \(V_{4}\) | 18 | * |
| \(V_{5}\) | 13.25 | & |
So, in our example we can conclude that \(V_{2}\) is the best variety because it is having the highest mean and is significantly different from others.
Note
In some cases, more than one alphabet can appear against a treatment mean, see the hypothetical example below.
| Treatments | Grouping |
|---|---|
| \(V_2\) | a |
| \(V_1\) | ab |
| \(V_3\) | bc |
| \(V_4\) | c |
| \(V_5\) | d |
Here \(V_1\) carries two letters (ab), meaning it is not significantly different from \(V_2\) (they share a) and also not significantly different from \(V_3\) (they share b), while \(V_2\) and \(V_3\) do not share a letter and so are significantly different from each other.
Note
When a lettering like this appears, treatments having common alphabets are not significantly different. In the above table \(V_{2}\) and \(V_{1}\) are not significantly different, as both of them have the common letter a. At the same time you can see \(V_{5}\) and \(V_{4}\) are significantly different, as they don’t have any common letters.
20.1.6 Advantages of a CRD
Its layout is very easy.
There is complete flexibility in this design i.e. any number of treatments and replications for each treatment can be tried.
Whole experimental material can be utilized in this design.
This design yields maximum degrees of freedom for experimental error.
The analysis of data is simplest as compared to any other design.
Even if some values are missing the analysis can be done.
20.1.7 Disadvantages of a CRD
Not suitable for field experiments.
Relatively low accuracy due to lack of local control. Completely homogeneous experimental units are practically difficult in many situations.
20.2 Randomized Complete Block Designs (RCBD)
In field experiments, the plots on which treatments are applied may not be uniform and there may be difference in plot-to-plot fertility. In such cases CRD cannot be recommended. If there is only one source constituting the difference between the plots then we can recommend randomized block design.
The randomized complete block design (RCBD) is one of the most widely used experimental designs in agricultural research. The design is especially suited for field experiments where the number of treatments is not large and the experimental area has a predictable fertility gradient. It is also termed as RBD (Randomized Block Design) in some textbooks.
When the experimental material is heterogeneous, the experimental material is grouped into homogeneous sub-groups called blocks. As each block consists of the entire set of treatments a block is equivalent to a replication. For example, in a field with known fertility gradient in one direction, plots perpendicular to this gradient will be considered as a block. In RCBD blocks are of equal size and contains all the treatments. Since the block contains all the treatments, the term ‘complete block design’ is used. See Figure 20.4 to see how blocks are formed in a field.
Note
In RCBD, number of replications, \(r\) = number of blocks. Number of plots within a block = number of treatments, \(v\).
20.2.1 Blocking technique
Blocking or local control, one of the basic principles of design is effectively implemented in RCBD. The primary purpose of blocking is to reduce experimental error by eliminating the contribution of known sources of variation among experimental units. This is achieved by grouping homogeneous units together, so that variability with in blocks is minimized, between blocks is maximized.
Two important factors to be considered for blocking
The selection of the source of variability to be used as the basis for blocking, in field experiments usually fertility gradient or productivity gradient is used as the identified source of variability.
Proper selection of the block shape and orientation. For example, when the gradient is unidirectional, use long and narrow blocks. Use square blocks for strong fertility gradient in both directions. An experimenter should use his common sense to identify the shape and orientation of the block after examining the field conditions, such that plots in a block are homogeneous.
20.2.2 Randomization in RCBD
Consider an experiment involving four treatments A, B, C, D in RCBD. Each treatment is replicated 5 times. Randomization procedure is as explained below. The randomization process for a RCB design is applied separately and independently to each of the blocks.
STEP 1. Divide the experimental area into \(r\) equal blocks, where \(r\) is the number of replications. In our example \(r =\) 5.
STEP 2. Subdivide each block into \(v\) experimental plots, where \(v\) is the number of treatments. Number the \(v\) plots consecutively from 1 to \(v\), and assign \(v\) treatments at random to the \(v\) plots following the randomization scheme for the CRD described in Section Section 20.1.1.1. In our example each of the 5 blocks are divided into 4 plots. Plots are numbered 1 to 4 in each block. Now for each block, paper lots of 1 to 4 is prepared. Treatment names are written in order and plot number from each lot is recorded in order as shown below.
| Treatments | A | B | C | D |
|---|---|---|---|---|
| Plot number from lot | 2 | 1 | 4 | 3 |
STEP 3. All the treatments are allotted to the randomly selected plots. Step 2 is repeated in all blocks.
20.2.3 Layout of RCBD

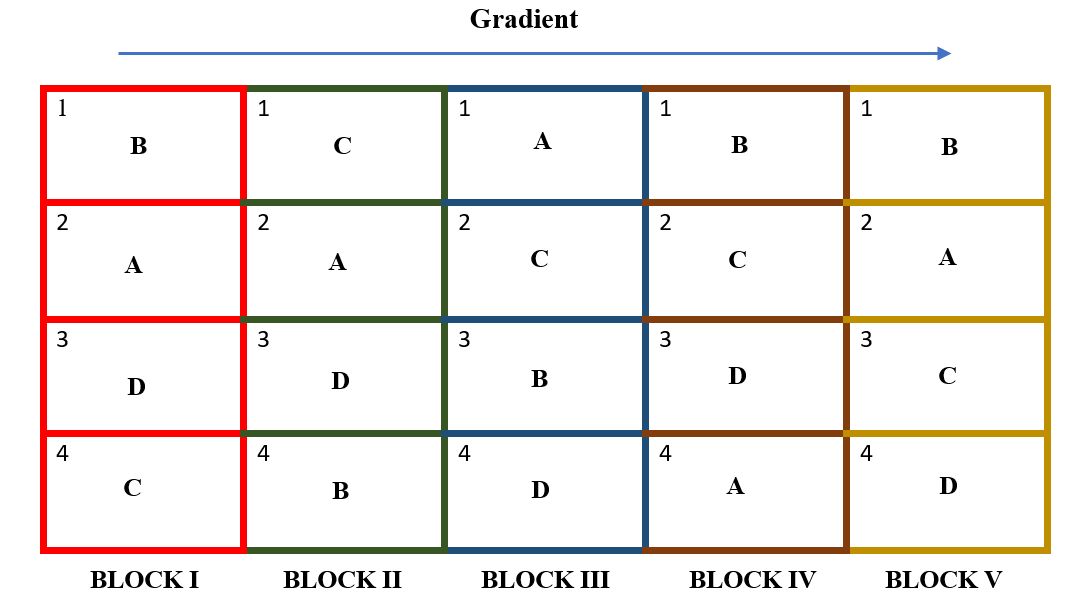

In RCBD each block will have all the treatments and each treatment appear in a block exactly once. After allotting the treatment according to the randomization procedure explained in section Section 20.2.2. The final layout will look like in the figure Figure 20.6.
Note
In RCBD every treatment will have the same number of replications (all treatments are equally replicated, say, \(r\) times). So we need a total of \(v \times r\) plots for conducting that experiment. Each of \(r\) blocks will contain \(v\) plots. So in this design, the number of blocks = number of replications of the treatments = \(r\), and number of plots within a block = number of treatments = \(v\).
20.2.4 Statistical Model for RCBD
Consider a RCBD with \(v\) treatments with \(r\) replications (Blocks). Statistical model for RCBD is same as that of two-way ANOVA described in section Section 18.6.2.1.
\[Y_{\text{ij}} = \mu + \tau_{i} + \gamma_{j}+ e_{\text{ij}}\]
where, i = 1,2, …, v and j =1,2, …, r. \(Y_{\text{ij}}\) is the observed value of response under \(i^{\text{th}}\) treatment and \(j^{\text{th}}\) block, \(\tau_{i}\) is the effect of \(i^{\text{th}}\) factor,\(\gamma_{j}\) is the effect of \(j^{\text{th}}\) block . \(\mu\) is the general effect which is common for all treatments. \(e_{\text{ij}}\) is the error effects.\(e_{ij}\) \(\sim iid\ N(0,\sigma^{2})\)
20.2.5 Analysis of RCBD
Analysis of RCBD is same as that explained in section Section 18.6.2.3 of two-way ANOVA.
Observation from \(v\) treatments in \(r\) blocks is arranged as shown below.
| Treatment | Block 1 | Block 2 | Block 3 | \(\cdots\) | Block \(r\) | Total |
|---|---|---|---|---|---|---|
| 1 | \(Y_{11}\) | \(Y_{12}\) | \(Y_{13}\) | \(\cdots\) | \(Y_{1r}\) | \(T_1\) |
| 2 | \(Y_{21}\) | \(Y_{22}\) | \(Y_{23}\) | \(\cdots\) | \(Y_{2r}\) | \(T_2\) |
| 3 | \(Y_{31}\) | \(Y_{32}\) | \(Y_{33}\) | \(\cdots\) | \(Y_{3r}\) | \(T_3\) |
| \(\vdots\) | \(\vdots\) | |||||
| \(v\) | \(Y_{v1}\) | \(Y_{v2}\) | \(Y_{v3}\) | \(\cdots\) | \(Y_{vr}\) | \(T_v\) |
| Total | \(B_1\) | \(B_2\) | \(B_3\) | \(\cdots\) | \(B_r\) | \(G\) |
The ANOVA table, following the calculations as in section Section 18.6.2.3, is
| Source | d.f | S.S | M.S.S | F |
|---|---|---|---|---|
| Treatments | \(v-1\) | \(\text{SST} = \dfrac{\sum_{i=1}^{v} T_i^2}{r} - \text{C.F.}\) | \(\dfrac{\text{SST}}{v-1} = \text{MST}\) | \(F_1 = \dfrac{\text{MST}}{\text{MSE}}\) |
| Blocks | \(r-1\) | \(\text{SSB} = \dfrac{\sum_{j=1}^{r} B_j^2}{v} - \text{C.F.}\) | \(\dfrac{\text{SSB}}{r-1} = \text{MSR}\) | \(F_2 = \dfrac{\text{MSR}}{\text{MSE}}\) |
| Error | \((v-1)(r-1)\) | \(\text{ESS} = \text{Total SS} - \text{SST} - \text{SSB}\) | \(\dfrac{\text{ESS}}{(v-1)(r-1)} = \text{MSE}\) | |
| Total | \(vr-1\) | \(\sum_{i=1}^{v}\sum_{j=1}^{r} Y_{ij}^2 - \text{C.F.}\) |
where \(\text{C.F} = \dfrac{G^2}{rv}\).
\(F_{1} \sim F_{(v-1),\ (v-1)(r-1)}\) and \(F_{2} \sim F_{(r-1),\ (v-1)(r-1)}\) are two F values, one for treatment and one for blocks respectively. Decisions on the null hypothesis are made by comparing the corresponding F value to the table value given in Table 29.1 of Appendix 5.
Note
What if \(F_{2}\) is not significant? If \(F_{2}\) is not significant, it indicates that there is no significant difference between blocks, meaning blocking is not effective. Blocking is considered effective in reducing the experimental error only if \(F_{2}\) is significant.
20.2.6 Post-hoc test in RCBD
If the null hypothesis for treatments is rejected in ANOVA; we proceed to post-hoc test explained in section Section 19.2. Arrange the treatment means in descending order. Critical difference (CD) or LSD (Least Significant Difference) is calculated for each treatment pair \(T_{i},\ T_{j}\) using the following formula.
\[CD = \ t_{\frac{\alpha}{2},edf}.\sqrt{\frac{2\ MSE}{r}}\] where, \(\text{MSE}\) is the Mean Square Error from ANOVA. \(t_{\frac{\alpha}{2},edf}\) is the critical value of two tailed student’s t distribution at \(\alpha\) level of significance and error degrees of freedom. \(r\) is the number of blocks/replication.
Procedure for grouping using symbols is same as that of CRD explained in section Section 20.1.4.1.
20.2.7 Replications in RCBD
As explained in section Section 20.1.5 number of replications in RCBD is found out using the equation of error degrees of freedom (edf). It is assumed that edf \(\geq 12\). For RCBD
\[(v - 1) (r-1) \geq 12 \tag{20.2}\]
where \(v\) is the number of treatments and \(r\) is the replication.
Example 20.3 You have 4 treatments; you are planning to conduct the experiment in RCBD. Find the minimum number of replications required.
Solution
from Equation 20.2
Since \(v\) = 4, edf \(= 3\left( r - 1 \right) \geq 12\)
\(\implies r \geq 5\), minimum replication required is 5
The number of replications required is 5.
Example 20.4 The yield of paddy (kg per plot) under four fertilizer treatments A, B, C, and D was studied using an RCBD with 5 blocks. The results are given below.
| Block | A | B | C | D | Total |
|---|---|---|---|---|---|
| Block 1 | 41 | 44 | 52 | 43 | 180 |
| Block 2 | 42 | 51 | 51 | 48 | 192 |
| Block 3 | 40 | 43 | 49 | 40 | 172 |
| Block 4 | 42 | 51 | 53 | 50 | 196 |
| Block 5 | 41 | 47 | 51 | 45 | 184 |
| Total | 206 | 236 | 256 | 226 | 924 |
Solution
Grand Total (G) = 924
Correction Factor \(= \dfrac{G^{2}}{n} = \dfrac{(924)^{2}}{20}\) = 42688.80
Total Sum of Squares (TSS) \(= (41^2+44^2+52^2+...+45^2) - CF\) \(= 43080 - 42688.80 = 391.20\)
Treatment Sum of Squares (SST) \(= \dfrac{1}{5}(206^{2} + 236^{2} + 256^{2} + 226^{2}) - CF\) \(= 42948.80 - 42688.80 = 260.00\)
Block Sum of Squares (SSB) \(= \dfrac{1}{4}(180^{2} + 192^{2} + 172^{2} + 196^{2} + 184^{2}) - CF\) \(= 42780.00 - 42688.80 = 91.20\)
Error Sum of Squares \(= 391.20 - 260.00 - 91.20 = 40.00\)
| Source of variation | df | Sum of squares | Mean Sum of squares | F Cal | F tab |
|---|---|---|---|---|---|
| Treatments | 3 | 260.00 | 86.67 | 26.00 | 3.49 |
| Blocks | 4 | 91.20 | 22.80 | 6.84 | 3.26 |
| Error | 12 | 40.00 | 3.33 | ||
| Total | 19 | 391.20 |
Since \(F_1\) (treatments) and \(F_2\) (blocks) both exceed their table values, treatments differ significantly, and blocking has been effective in reducing the experimental error.
\[CD = t_{\frac{\alpha}{2},edf}\sqrt{\frac{2\,MSE}{r}} = 2.179\sqrt{\frac{2 \times 3.33}{5}} = 2.516\]
Treatment means, in descending order, are C = 51.2, B = 47.2, D = 45.2, A = 41.2.
| Treatments | Means | Grouping |
|---|---|---|
| C | 51.2 | a |
| B | 47.2 | b |
| D | 45.2 | b |
| A | 41.2 | c |
Since \(C-B = 4.0\) and \(D-A = 4.0\), both exceed the CD of 2.516, so C is significantly superior to all other treatments, and A gives the significantly lowest yield. B and D do not differ significantly from each other (\(B-D = 2.0 < CD\)), so treatment C is recommended as the best-performing fertilizer.
20.2.8 Advantages of RCBD
Accuracy: RCB design has been shown to be more efficient or accurate than C.R.D. for most types of experimental work.
Flexibility: In RCBD no restrictions are placed on the number of treatments or the number of replicates.
Even if some values are missing, still the analysis can be done by using missing plot technique.
Ease of analysis: Statistical analysis is simple, rapid and straight forward.
20.2.9 Disadvantages of RCBD
RCBD may give misleading results if blocks are not homogeneous.
RCBD is not suitable for large number of treatments because in that case the block size will increase and it may not be possible to keep large blocks homogeneous.
If the data on more than two plots is missing the statistical analysis becomes tedious and complicated.
20.3 Latin Square Design (LSD)
In this design, variations in the field in two different directions (or variations due to two different factors) are controlled simultaneously from affecting the treatment comparisons. A layout in RBD controls only one source of external variation affecting the treatment comparisons by the construction of homogeneous blocks. Sometimes when blocks were laid out in a field the environmental conditions within each block need not be the same. For example, soil variability in a North South direction and an environmental gradient in an East West Direction then the conditions within each block will vary. In such situations the variability can be controlled by a Latin Square design (LSD). The blocks in a LSD are called rows and columns; they represent two external factors. The entire experimental area can be divided into small plots arranged in the form of a square. The number of plots in each row and each column are equal, both equal to the number of treatments to be compared.
20.3.1 Randomization
A Latin square of \(v\) treatments (usually called side \(v\)) is an arrangement of \(v\) treatments into \(v\) rows and \(v\) columns such that every treatment is replicated in each row and each column exactly once.
Latin squares of different orders are provided in standard statistical tables for use in experimental design. When \(v\) treatments are to be compared, a Latin square of order \(v\), that is, a \(v\times v\) square, is required. The order of the square is therefore determined directly by the number of treatments in the experiment. For example, an experiment involving four treatments requires a \(4\times4\) Latin square, whereas an experiment involving five treatments requires a \(5\times5\) Latin square.
Standard Latin squares suitable for experimental use are given in the tables of (Fisher and Yates 1935). In these tables, the Latin squares are presented in a standard form, with the treatment symbols arranged in a specified order, usually alphabetically, in the first row. Several standard squares may be available for a particular order, as illustrated in Figure 20.7. These standard arrangements serve only as the starting point for constructing the experimental layout; they should not be used directly without randomization.
For a given number of treatments (\(v\)), select an appropriate standard Latin square of order (\(v\)) from the statistical tables. The selected square is then randomized so that the treatment allocation is not influenced by the initial systematic arrangement of the standard square. Randomization is carried out by independently permuting the rows, columns, and treatment symbols according to the prescribed procedure. The resulting randomized Latin square provides the treatment allocation to the experimental units, with each treatment occurring exactly once in every row and once in every column. The randomization procedure is described in the following steps.
Let \(v = 6\). A Latin square for 6 treatments, denoted by A, B, C, D, E and F, can be constructed by placing the symbols in alphabetical order in the first row and generating each subsequent row by a symmetric cyclic shift of the one above it.
Figure 20.8 shows this standard, systematically-arranged Latin square for \(v = 6\) treatments before randomization. The blocking is applied in two directions, as rows and as columns, and the number of rows and columns each equals the number of treatments, \(v\). A standard Latin square of 6 treatments can also be directly obtained from the tables.
Randomization of a Latin square design involves three steps:
- Row randomization
- Column randomization
- Treatment randomization
For \(v\) treatments, select a Latin square of order \(v\) at random from the statistical tables, and then randomize it through the following steps.
Row randomization: Number the rows of the selected square from 1 to \(v\). Keeping the first row fixed, rearrange the remaining rows in a random order using random numbers. This produces a new square, as shown in Figure 20.9.
Column randomization: Once the rows have been randomized, rearrange the columns in a random order in the same manner to obtain a further randomized square, as shown in Figure 20.10.
Treatment randomization: Finally, assign the \(v\) treatments at random to the \(v\) letters (A, B, …, F). The resulting square gives the field layout of the design.
20.3.2 Layout
The fully randomized square obtained at the end of the randomization procedure, shown in Figure 20.10, gives the field layout of the design. Each row and each column of the square corresponds to a physical row and column of plots in the field, and each cell gives the treatment to be applied to that plot. Since every treatment appears exactly once in each row and exactly once in each column, variation in both the row and column directions is controlled simultaneously.
20.3.3 Statistical model for LSD
The data collected from experiments in LSD are classified according to the levels of three factors. So it is called a three-way classified design. The two types of blocking (rows and columns) and treatments make up the three factors. The linear model for analysis is:
\[Y_{\text{ijk}} = \mu + \tau_{i} + R_{j}+ C_{k}+e_{\text{ijk}} \tag{20.3}\]
where \(i,j,k = 1,2,3,...\ v\)
i.e., the response (yield \(Y_{ijk}\)) of each plot = a general mean effect (\(\mu\)) + effect due to the \(i^{th}\) treatment (\(\tau_{i}\)) + effect of the \(j^{th}\) row (\(R_{j}\)) + effect due to the \(k^{th}\) column (\(C_{k}\)) + random error term associated with each plot (\(e_{ijk}\)).
20.3.4 Analysis
The effect of the general mean is subtracted from each sum of squares (by subtracting the correction factor \(C.F. = \dfrac{(\sum{y_{ijk}})^2} {v^2}\)). The total sum of squares is split into four components: (i) variation between the treatments as treatment sum of squares, (ii) variation between the rows, (iii) variation between the columns, and (iv) variation within the factors, i.e., error sum of squares.
To calculate the sum of squares, arrange the data according to the rows, columns and treatments and obtain the respective totals. Let the treatment totals be \(T_{1}\), \(T_{2}\), …., \(T_{v}\); row totals be \(R_{1}\), \(R_{2}\), \(R_{3}\), …, \(R_{v}\) and column totals be \(C_{1}\), \(C_{2}\), \(C_{3}\), …, \(C_{v}\).
| Source of Variation | d.f | Sum of Squares | M.S.S | F value |
|---|---|---|---|---|
| Between treatments | \(v-1\) | \(\dfrac{\sum T_i^2}{v} - CF\) | \(MST\) | \(\dfrac{\text{MST}}{\text{MSE}}\) |
| Between rows | \(v-1\) | \(\dfrac{\sum R_j^2}{v} - CF\) | \(MSR\) | \(\dfrac{\text{MSR}}{\text{MSE}}\) |
| Between columns | \(v-1\) | \(\dfrac{\sum C_k^2}{v} - CF\) | \(MSC\) | \(\dfrac{\text{MSC}}{\text{MSE}}\) |
| Error | \((v-1)(v-2)\) | By subtraction | \(MSE\) | |
| Total | \(v^2-1\) | \(\sum Y_{ijk}^2 - CF\) |
All these computed F values are compared with the F table values for \((v-1)\) and \((v-1)(v-2)\) degrees of freedom.
20.3.5 Post hoc test (LSD)
If the treatments turn out to be significant, then the means are compared pairwise using Fisher’s Least Significant Difference (LSD) test, as explained in section Section 19.2.
\[C.D. = t_{\left( \frac{\alpha}{2},\ error\ df \right)}\sqrt{\frac{2\,MSE}{v}} \tag{20.4}\]
Here \(t_{\left( \frac{\alpha}{2},\ error\ df \right)}\) denotes the critical value of Student’s t for a two tailed test at \(\alpha\) level of significance and error degrees of freedom. If the difference between any two treatment means is greater than the critical difference, they are significantly different; otherwise they are said to be on par. Procedure for grouping using letters or symbols is the same as that of CRD, explained in section Section 20.1.4.1.
20.3.6 Replications in LSD
Unlike CRD and RCBD, the number of replications in LSD is not a free choice, since the design requires the number of rows, columns, and treatments to all equal \(v\); each treatment is automatically replicated \(v\) times, once in each row and once in each column. So instead of solving for the number of replications, the minimum number of treatments \(v\) required is found using the equation for error degrees of freedom (edf). It is assumed that edf \(\geq 12\). For LSD
\[(v-1)(v-2) \geq 12 \tag{20.5}\]
Example 20.5 Find the minimum number of treatments \(v\) (and hence replications) required for an experiment conducted in LSD.
Solution
from Equation 20.5, \((v-1)(v-2) \geq 12\)
Trying \(v = 4\): \((3)(2) = 6 < 12\), not sufficient.
Trying \(v = 5\): \((4)(3) = 12 \geq 12\), sufficient.
The minimum number of treatments (and replications) required is 5.
Example 20.6 Consider a 5x5 LSD experimental setup as follows
| Row | C1 | C2 | C3 | C4 | C5 |
|---|---|---|---|---|---|
| R1 | C 28 | B 36 | E 18 | D 42 | A 35 |
| R2 | E 27 | D 43 | B 27 | A 34 | C 32 |
| R3 | B 40 | A 44 | D 39 | C 36 | E 38 |
| R4 | D 41 | C 26 | A 34 | E 19 | B 37 |
| R5 | A 41 | E 16 | C 20 | B 31 | D 45 |
Solution
The three null hypotheses (one each for treatments, rows, and columns) are
\(H_{01}\): \(\mu_{11} = \mu_{12} = \mu_{13} = \mu_{14} = \mu_{15}\) (treatment means are equal)
\(H_{11}\): at least two of the treatment means are different
\(H_{02}\): \(\mu_{21} = \mu_{22} = \mu_{23} = \mu_{24} = \mu_{25}\) (row means are equal)
\(H_{12}\): at least two of the row means are different
\(H_{03}\): \(\mu_{31} = \mu_{32} = \mu_{33} = \mu_{34} = \mu_{35}\) (column means are equal)
\(H_{13}\): at least two of the column means are different
| Row | C1 | C2 | C3 | C4 | C5 | Total | Mean |
|---|---|---|---|---|---|---|---|
| R1 | C 28 | B 36 | E 18 | D 42 | A 35 | 159 | 31.8 |
| R2 | E 27 | D 43 | B 27 | A 34 | C 32 | 163 | 32.6 |
| R3 | B 40 | A 44 | D 39 | C 36 | E 38 | 197 | 39.4 |
| R4 | D 41 | C 26 | A 34 | E 19 | B 37 | 157 | 31.4 |
| R5 | A 41 | E 16 | C 20 | B 31 | D 45 | 153 | 30.6 |
| Total | 177 | 165 | 138 | 162 | 187 | 829 | |
| Mean | 35.4 | 33 | 27.6 | 32.4 | 37.4 |
Grand Total (G)= 829
Correction Factor(C.F) \(= \frac{G^{2}}{n} = \frac{\left( 829 \right)^{2}}{25}\)= 27489.64
Total Sum of Squares(TSS)= \((28^2+36^2+18^2+...+31^2)-27489.64\) \(=29243-27489.64 = 1753.36\)
Row Sum of Squares(RSS)=\(\frac{1}{5}(159^{2} + 163^{2} + 197^{2}+157^{2}+153^{2}) - CF\) \(=27743.4-27489.64 = 253.76\)
Column Sum of Squares(CSS)=\(\frac{1}{5}(177^{2} + 165^{2} + 138^{2}+162^{2}+187^{2}) - CF\) \(= 27762.2-27489.64 = 272.56\)
Treatment Sum of Squares(SSt)=\(\frac{1}{5}(188^{2} + 171^{2} + 142^{2}+210^{2}+118^{2}) - CF\) \(= 28554.6 - 27489.64 = 1064.96\)
Error Sum of Squares \(= 1753.36 - 253.76- 272.56-1064.96 = 162.08\)
| Source of variation | df | Sum of squares | Mean Sum of squares | F Cal | F tab |
|---|---|---|---|---|---|
| Row | 4 | 253.76 | 63.44 | 4.70 | 3.26 |
| Column | 4 | 272.56 | 68.14 | 5.04 | 3.26 |
| Treatment | 4 | 1064.96 | 266.24 | 19.71 | 3.26 |
| Error | 12 | 162.08 | 13.51 | ||
| Total | 24 | 1753.36 |
Since the F cal is greater than the F table value, all the null hypotheses are rejected.
\[C.D. = t_{\left( \frac{\alpha}{2},\ error\ df \right)}\sqrt{\frac{2\,MSE}{v}} = 2.18\sqrt{\frac{2 \times 13.51}{5}} = 5.07\]
Mean of treatment D is maximum which is statistically at par with A. Mean of E is minimum and statistically at par with C.
20.3.7 Advantages of LSD
LSD is efficient when there are trends in fertility in two perpendicular directions or when there are two factors contributing to experimental error.
20.3.8 Disadvantages of LSD
In LSD there is no restriction like number of replications = number of treatments, as required in RCBD; the number of replications is instead fixed to be equal to the number of treatments \(v\). The error degrees of freedom in this design is \((v-1)(v-2)\). For a number of treatments like \(v\) = 2, 3 and 4, this value is 0, 2 and 6 respectively (i.e., very small, hence we cannot carry out the experiment as such for these values of \(v\)).
Similarly when \(v>10\) the total number of plots required is \(v^2 > 100\). So there will be difficulty in getting a large number of homogeneous plots. So LSD is commonly used for 5 to 10 treatments only.
20.4 Chapter Summary
Fill in the blanks
Answers are given at the end of the chapter.
Experiments in which only a single factor varies while all others are kept constant are called __________ experiments.
In CRD, treatments are assigned to experimental units __________.
CRD requires only the two basic principles of __________ and replication.
__________ is not required in CRD since all experimental units are homogeneous.
CRD is suitable for experiments with __________ experimental units, such as laboratory or greenhouse experiments.
In CRD, treatments can have __________ replications.
The total number of experimental units in CRD is given by \(n =\) __________.
The error degrees of freedom in CRD is given by __________.
A common rule of thumb is that the error degrees of freedom of a design should be at least __________.
The statistical model for CRD is the same as that of __________ ANOVA.
In the CRD model \(Y_{ij}=\mu+\tau_i+e_{ij}\), \(\tau_i\) represents the effect of the \(i^{th}\) __________.
The post-hoc test commonly used after a significant ANOVA in agricultural experiments is Fisher’s __________ test.
Treatment pairs whose difference in means is greater than the critical difference are said to be significantly __________.
Treatments that are not significantly different from each other are said to be __________.
RCBD is recommended when the experimental material has a fertility gradient in __________ direction.
Compared to CRD, RCBD additionally uses the principle of __________.
Homogeneous sub-groups into which experimental material is grouped in RCBD are called __________.
In RCBD, the number of replications equals the number of __________.
In RCBD, the number of plots within a block equals the number of __________.
The statistical model of RCBD is the same as that of __________ ANOVA.
In the RCBD model \(Y_{ij}=\mu+\tau_i+\gamma_j+e_{ij}\), \(\gamma_j\) represents the effect of the \(j^{th}\) __________.
If the F value for blocks in an RCBD ANOVA is not significant, it indicates that __________ has not been effective.
The error degrees of freedom formula for RCBD is __________.
Latin Square Design controls variation in __________ perpendicular directions simultaneously.
In a Latin square of side \(v\), every treatment is replicated in each row and each column exactly __________.
Data from an LSD experiment are classified according to __________ factors, making it a three-way classified design.
In an LSD, the number of rows, columns, and treatments are all equal to __________.
The error degrees of freedom in an LSD is given by __________.
LSD is commonly recommended for __________ to __________ treatments.
The mathematician who studied Latin squares in the eighteenth century, long before their use in experimental design, was __________.
Fisher introduced the Latin square design in his book __________.
In LSD, the total sum of squares is split into __________ components.
In LSD, the correction factor is calculated as __________.
Among CRD, RCBD, and LSD, for a fixed number of treatments and replications, __________ yields the maximum error degrees of freedom.
In a treatment-grouping table, treatments sharing a common letter are __________ significantly different.
Fisher’s LSD formula for CRD with equal replication uses __________ in the denominator under the square root, along with \(2\times\text{MSE}\).
In CRD with unequal replication, the C.D. formula uses \(\dfrac{1}{r_i}+\dfrac{1}{r_j}\) in place of __________.
The blocks in a Latin Square Design are called __________ and __________.
Short-answer questions
Define a single factor experiment.
What is a Completely Randomized Design?
Explain why CRD is rarely used for field experiments.
Which basic principles of design are followed in CRD, and which is not required?
Explain the randomization procedure used in CRD.
Write the statistical model for CRD and explain each term.
Explain how the treatment sum of squares is calculated in CRD when replications are unequal.
Explain Fisher’s Least Significant Difference (LSD) test.
Distinguish between “significantly different” and “at par” treatments.
Explain how letters or symbols are used to group treatment means.
State the advantages of CRD.
State the disadvantages of CRD.
Explain why the error degrees of freedom of a design is generally kept at 12 or more.
Explain how the minimum number of replications required for a CRD is determined.
Explain the concept of blocking in RCBD.
What two factors should be considered while forming blocks in a field experiment?
Describe the randomization procedure followed in RCBD.
Explain the layout of an RCBD.
Write the statistical model for RCBD and explain each term.
Explain how the number of replications required for an RCBD is determined.
Explain what it means when the F value for blocks is not significant in an RCBD ANOVA.
State the advantages of RCBD over CRD.
State the disadvantages of RCBD.
Explain why a Latin Square Design is used instead of RCBD in certain situations.
Explain the layout of a Latin Square Design.
Describe the randomization procedure followed in LSD.
Write the statistical model for LSD and explain each term.
Explain why the error degrees of freedom in an LSD is \((v-1)(v-2)\).
Explain why LSD is not commonly used for a very small or very large number of treatments.
State the advantages and disadvantages of LSD.
Numerical and conceptual questions
Answers are given at the end of the chapter.
An experimenter has 6 treatments and plans to conduct the experiment in CRD. Find the minimum number of replications required.
An experimenter has 5 treatments and plans to conduct the experiment in RCBD. Find the minimum number of blocks required.
A CRD has 4 treatments with 6 replications each. Write down the degrees of freedom for treatments, error, and total.
An RCBD has 5 treatments and 4 blocks. Write down the degrees of freedom for treatments, blocks, error, and total.
A Latin Square Design has \(v=6\) treatments. Write down the degrees of freedom for rows, columns, treatments, error, and total.
In a CRD, the treatment sum of squares is 210.40 and the total sum of squares is 285.60, with 4 treatments and 4 replications each. Find the error sum of squares and the degrees of freedom for treatments and error.
In an RCBD with \(v=5\) treatments and \(r=4\) blocks, the total SS is 500, treatment SS is 300, and block SS is 120. Find the error SS and the error degrees of freedom.
In a Latin square with \(v=5\), the row SS is 253.76, column SS is 272.56, treatment SS is 1064.96, and total SS is 1753.36. Find the error SS.
Why is CRD generally preferred over RCBD when experimental units are known to be homogeneous?
Two treatments in a CRD have means 40 and 35, and the calculated critical difference is 4. Are the two treatments significantly different? Explain.
Two treatments in an RCBD have means 28 and 30, and the calculated critical difference is 3. Are the two treatments significantly different? Explain.
Explain, with reasons, whether CRD, RCBD, or LSD would be most appropriate for a greenhouse pot experiment with homogeneous potting mixture.
Explain, with reasons, whether CRD, RCBD, or LSD would be most appropriate for a field experiment with a fertility gradient running in one direction only.
Explain, with reasons, whether CRD, RCBD, or LSD would be most appropriate for a field experiment with fertility gradients running in two perpendicular directions.
In a treatment-grouping table, treatment P is labelled “a”, treatment Q is labelled “ab”, and treatment R is labelled “b”. Explain the relationships among P, Q, and R.
Important formulae
Total number of experimental units in CRD:
\[ n=rt \]
Error degrees of freedom in CRD:
\[ edf=n-t=t(r-1) \]
Error degrees of freedom in RCBD:
\[ edf=(v-1)(r-1) \]
Error degrees of freedom in LSD:
\[ edf=(v-1)(v-2) \]
Critical difference for CRD with equal replication:
\[ C.D.=t_{\left(\frac{\alpha}{2},\,error\,df\right)}\sqrt{\frac{2\,MSE}{r}} \]
Critical difference for CRD with unequal replication:
\[ C.D.=t_{\left(\frac{\alpha}{2},\,error\,df\right)}\sqrt{MSE\left(\frac{1}{r_i}+\frac{1}{r_j}\right)} \]
Critical difference for RCBD:
\[ CD=t_{\frac{\alpha}{2},edf}\sqrt{\frac{2\,MSE}{r}} \]
Critical difference for LSD:
\[ C.D.=t_{\left(\frac{\alpha}{2},\,error\,df\right)}\sqrt{\frac{2\,MSE}{v}} \]
Correction factor for LSD:
\[ C.F.=\frac{\left(\sum y_{ijk}\right)^2}{v^2} \]
Quick revision
A single factor experiment varies only one factor, the treatments, while all other conditions are kept uniform.
CRD uses only randomization and replication; local control is not needed since experimental units are already homogeneous.
CRD is best suited to laboratory and greenhouse experiments; it is rarely used for field experiments because field plots are usually not homogeneous.
RCBD adds local control (blocking) to randomization and replication, grouping heterogeneous experimental material into homogeneous blocks along a single known source of variation, most often a fertility gradient.
In RCBD, number of blocks = number of replications, and number of plots per block = number of treatments.
LSD controls variation in two perpendicular directions at once, using rows and columns as two separate blocking factors, so the number of rows, columns, and treatments are all equal.
The statistical model of CRD matches one-way ANOVA; the model of RCBD matches two-way ANOVA; LSD requires a three-way classification (rows, columns, treatments).
Error degrees of freedom should generally be at least 12, since F critical values change very little beyond this point; this rule is used to decide the minimum number of replications needed in a design.
When the overall F test for treatments is significant, Fisher’s Least Significant Difference (LSD) test is used to compare treatment pairs.
Treatment means that share a common letter or symbol in a grouping table are not significantly different from each other.
Among CRD, RCBD, and LSD (for the same number of treatments and replications), CRD gives the largest error degrees of freedom, since none of the variation is set aside for blocking.
LSD is typically restricted to 5 to 10 treatments: too few treatments leave almost no error degrees of freedom, and too many require an impractically large number of homogeneous plots.
Answers to fill in the blanks
1. Single factor 2. Completely at random 3. Randomization 4. Local control 5. Homogeneous 6. Unequal 7. \(rt\) 8. \(n-t\) or \(t(r-1)\) 9. 12 10. One-way 11. Treatment 12. Least Significant Difference (LSD) 13. Different 14. At par 15. One 16. Local control 17. Blocks 18. Blocks 19. Treatments 20. Two-way 21. Block 22. Blocking 23. \((v-1)(r-1)\) 24. Two 25. Once 26. Three 27. \(v\) 28. \((v-1)(v-2)\) 29. Five; ten 30. Leonhard Euler 31. Statistical Methods for Research Workers 32. Four 33. \(\dfrac{(\sum y_{ijk})^2}{v^2}\) 34. CRD 35. Not 36. \(r\) (the common number of replications) 37. \(\dfrac{2}{r}\) 38. Rows; columns
Solutions to numerical and conceptual questions
For CRD, \(edf=t(r-1)\geq12\). With \(t=6\), \(6(r-1)\geq12 \Rightarrow r-1\geq2 \Rightarrow r\geq3\). The minimum number of replications required is 3.
For RCBD, \(edf=(v-1)(r-1)\geq12\). With \(v=5\), \(4(r-1)\geq12 \Rightarrow r-1\geq3 \Rightarrow r\geq4\). The minimum number of blocks required is 4.
With \(t=4\) treatments and \(r=6\) replications, \(n=24\). Treatment df \(=t-1=3\); Error df \(=n-t=20\); Total df \(=n-1=23\).
With \(v=5\) treatments and \(r=4\) blocks, \(n=20\). Treatment df \(=v-1=4\); Block df \(=r-1=3\); Error df \(=(v-1)(r-1)=12\); Total df \(=n-1=19\).
With \(v=6\), Row df \(=v-1=5\); Column df \(=v-1=5\); Treatment df \(=v-1=5\); Error df \(=(v-1)(v-2)=20\); Total df \(=v^2-1=35\).
Error SS \(=285.60-210.40=75.20\). Treatment df \(=4-1=3\); Error df \(=n-t=16-4=12\).
Error SS \(=500-300-120=80\). Error df \(=(v-1)(r-1)=(5-1)(4-1)=12\).
Error SS \(=1753.36-253.76-272.56-1064.96=162.08\).
CRD makes full use of the experimental material without setting aside any degrees of freedom for blocking, so when units are genuinely homogeneous, CRD gives the maximum possible error degrees of freedom and the simplest analysis, without the loss of information that blocking causes when it is not actually needed.
The difference between the means is \(40-35=5\), which is greater than the critical difference of 4, so the two treatments are significantly different.
The difference between the means is \(30-28=2\), which is less than the critical difference of 3, so the two treatments are not significantly different; they are said to be at par.
CRD would be most appropriate, since the potting mixture is homogeneous and environmental conditions in a greenhouse are relatively easy to control; local control is unnecessary, and CRD gives the simplest analysis with the maximum error degrees of freedom.
RCBD would be most appropriate, since the fertility gradient runs in a single direction and can be controlled by forming blocks perpendicular to that gradient, leaving randomization and replication within each block to handle the remaining variation.
LSD would be most appropriate, since it controls variation in two perpendicular directions simultaneously using rows and columns, which a single blocking factor in RCBD cannot do.
P (labelled “a”) and Q (labelled “ab”) share the letter “a”, so they are not significantly different. Q (labelled “ab”) and R (labelled “b”) share the letter “b”, so they are also not significantly different. However, P (labelled “a”) and R (labelled “b”) share no common letter, so they are significantly different from each other.
Historical Insights
From a soldiers’ puzzle to the experimental field
The Latin square has a history far older than the science of experimental design. The great mathematician Leonhard Euler studied such squares in the eighteenth century, most famously through his “problem of the 36 officers”: can six regiments, each with six officers of six different ranks, be arranged in a 6 x 6 square so that every row and every column contains one officer of each rank and one from each regiment? Euler conjectured that no such arrangement exists for a 6 x 6 square, and he was eventually proved right. He called the arrangements Latin squares because he used Latin letters to fill them.
For more than a century the Latin square remained a mathematical curiosity. Its transformation into a tool of science came in the 1920s at the Rothamsted Experimental Station, where Ronald A. Fisher recognised that the same combinatorial structure could solve a very practical agricultural problem: how to remove soil fertility variation running in two perpendicular directions at once. By assigning treatments so that each appears exactly once in every row and every column, the row and column effects (the two fertility gradients) can be separated out and removed from the experimental error. Fisher introduced the Latin square design in his 1925 book Statistical Methods for Research Workers and developed it further in The Design of Experiments (1935). What began as a puzzle about arranging officers thus became one of the most elegant designs in agricultural research, and a fine example of how pure mathematics can find unexpected use in the service of science. (Fisher 1925)
Quotes to Inspire
“The object of statistical methods is the reduction of data.”
- R. A. Fisher
